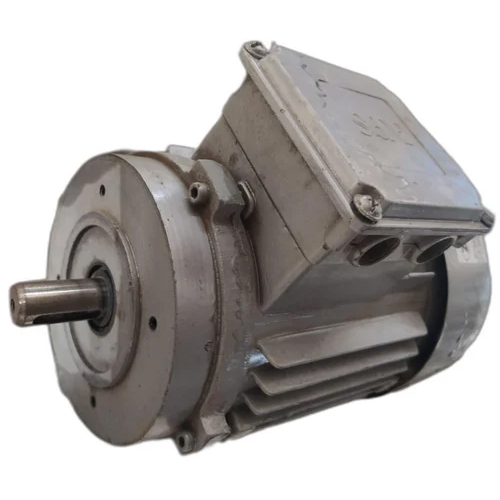

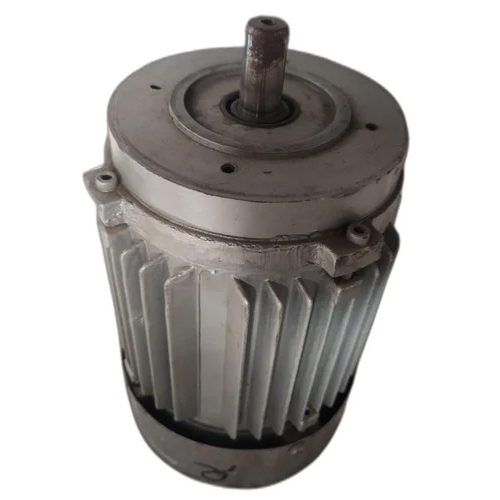

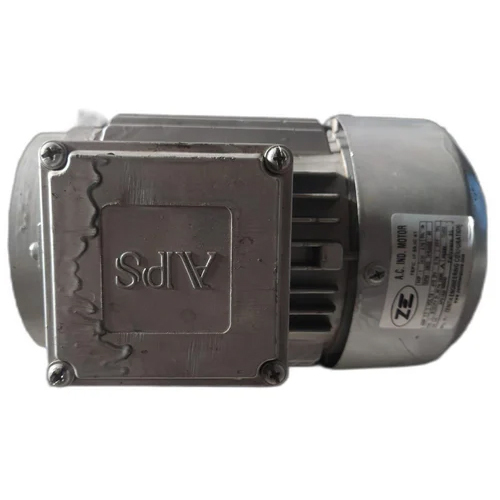

10 HP Three Phase Induction Motor

10 HP Three Phase Induction Motor Price And Quantity

• Minimum Order Quantity 10 Unit
• Price 30000 INR/Unit

10 HP Three Phase Induction Motor Product Specifications

• Color Blue & Grey
• Features Energy Efficient, Low Vibration, Low Maintenance
• Power 7.5 kW
• IP Rating IP55
• Horse Power 10 HP
• Poles Number 4
• Rated Voltage 415 V
• Product Type Induction Motor
• Starting Type DOL (Direct On Line)
• Sealed Type Mechanical Seal
• Ambient Temperature -10C to +50C
• Efficacy IE2
• Power Rating 7.5 kW
• Weight 72 kg
• Cooling Method Air Cooled
• Protect Feature Drip-Proof
• Frequency (MHz) 50 Hz
• Bearing Type Deep Groove Ball Bearing
• Phase Three Phase
• Dimension (L*W*H) Approx. 520 x 320 x 350 mm
• Voltage 415 V
• Rated Frequency 50 Hz
• Speed 1440 RPM
• Noise Level Below 70 dB
• Torque 49.7 Nm
• Pressure Standard Atmospheric
• Standard IS 325, IEC 60034
• Mounting Type Foot Mounted (B3)
• Shaft Diameter 38 mm
• Current Type AC
• Motor Type Squirrel Cage Induction Motor
• Output Power 10 HP (Horse Power)

• Rotor Type Aluminum Die Cast
• Frame Material Cast Iron
• Thermal Protection Thermistors (optional)
• Lubrication Type Grease Lubricated
• Vibration Level Within Permissible Limits as per IS 12075
• Insulation Class Class F
• Service Factor 1.15
• Altitude Up to 1000 meters above sea level
• Duty Type S1 (Continuous Duty)

10 HP Three Phase Induction Motor Trade Information

• Supply Ability 5000 Unit Per Month
• Delivery Time 10 Days
• Main Domestic Market All India
